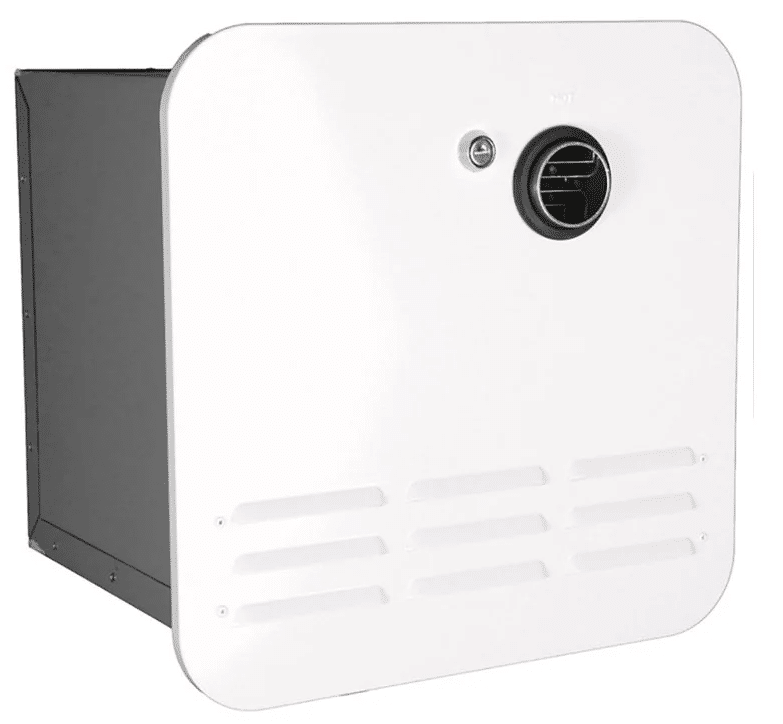

Hot water is available in the caravan and motor home at any time and without preheating immediately in “unlimited” quantity. A comfort that you are used to at home, can also be enjoyed on vacation. No matter how long you shower, no matter how many people – there is always enough hot water.
Technical data:
- Approved in the following countries: AT, BE, BG, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, HR, IE, IS, IT, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK
- Gas type Butane G30/ Propane G31: 30 mbar
- Heater classification: Type C12 (Fanned)
- Diameter of the exhaust pipe: 45 mm
- Standard length of the exhaust pipe : < 15 mm (measured from the surface of the service door)
- Nominal maximum input power: 10 kW
- Maximum gas consumption: 765 g/h
- Maximum gas consumption: 36 Mj/h
- Minimum input power: 5 kW
- Pressure at test port: 22 mbar
- Efficiency: > 84 %
- Maximum water pressure: 5 bar
- Minimum water pressure: 0.5 bar
- Minimum start flow: 1.5 l/min
- Selectable water temperature: 35 – 60 °C (stepless)
- Temperature increase at 3.3 l/m: 37.7 °C
- Requirement for a stable minimum at: Cold water temperature maximum 15 °C
- Water temperature of 35.5 °C: 3.3 l/min
- Nominal supply voltage VDC: 12
- Voltage range VDC: 10.5 – 15
- Maximum current consumption: 0.44 A
- Storage temperature (dry): 0 – 50 °C
- Scope of delivery:
- IWH-1.5E
- Hat nut and cutting ring for 8 mm copper gas line

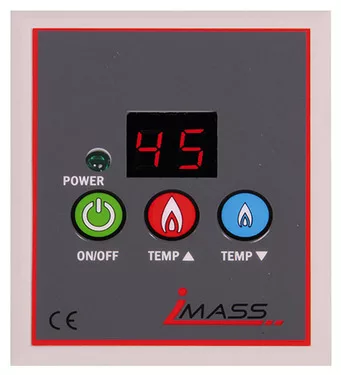

- Operating part
- 2 keys for service door
- Installation and operating instructions
| Length: | 320 mm |
| Width: | 320 mm |
| Height: | 320 mm |
| Weight: | 11.9 kg |
